Tuesday, September 21, 2010

We are in the process of designing a ronded building with an all-glass extgerior. This leads to the situation that an interior wall needs to end at a glass panel. Revit presents with this solution:

Hmm. Not what I wanted.

The solution that I came up with is a bit of a workaround, but it gets the job done.

First I created a new, very thin wall.
Not that the material I used is the same material that covers the interior walls. That way mt schedules will still be correct and the result in the renders will also look nice. (Or render-program Artlantis uses the Revit materials as the base for its own images).

I then drew the thin wall at the angle that the interior wall was supposed to be fased at (parallel to the existing Curtain Wall):

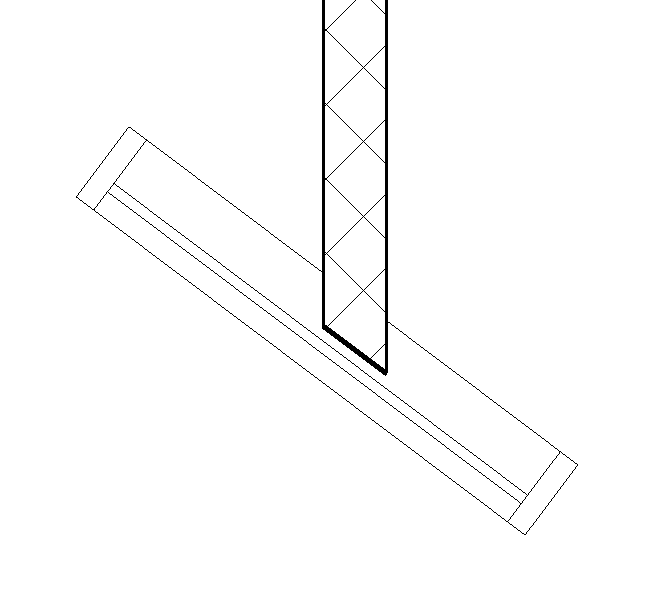

Having done this I cleaned up the result with the Trim tool and adjusted the length of the thin wall:

And that's it. Job done.
Nice.
